12 Military Drones Employed By The US Military

Military drones, or Unmanned Aerial Vehicles (UAVs), are a true game-changer in military operations.

Drones offer many advantages over traditional warfare tactics with the ultimate goal of reducing soldier fatalities.

Though there is plenty of controversy regarding the government use of military drones it is not something that is going away.

Global spending on unmanned aerial vehicles is expected to nearly reach $100 billion in the coming decade.

Learn more about drones the military currently uses and reasons why UAV operators will continue to be in high demand in the future.

Related Article: Which Branch Of The Military Should I Join? 7 Things To Consider

Why The Sudden Explosion of Military Drones?

us military drones
Military drones keep more ground troops out of harm’s way by delivering reconnaissance and surveillance, as well as aerial fire support. Image: Goodfellow AFB

The U.S. government has experimented with advanced weapons that could be used on the battlefield for decades.

Gaining any advantage on the battlefield is fundamental to survival and winning wars.

The most profound innovation in military warfare in the last several decades, if not the last century, is the introduction of unmanned aerial vehicles (UAVs).

Unmanned aerial vehicles, or drones, have powerful capabilities when it comes to surveillance and reconnaissance.

Furthermore, military drones are capable of sending missiles or bombs in drone strikes.

The primary advantage of UAVs is that the device does not need an onboard human pilot.

Consequently, the U.S. Military has relied upon drones for several coordinated attacks that in the past would have required more soldiers on the ground.

The Military Drone Controversy

The theory is that drones can save military lives yet there are plenty of critics that add they also take innocent lives in the process.

Settling the drone controversy is a subject for another article, so in this one, we will focus on the specific types of UAVs the military currently uses on the battlefield.

The U.S. government is the largest leading in military drone spending with an estimated $2.9 billion currently dedicated to UAVs.

By the end of the decade, the U.S. government currently plans to spend close to $38 billion on military drones.

It’s also estimated that the government has several more billions in UAV spending that do not get reported because of classified programs.

The use of unmanned aerial vehicles is skyrocketing with no end in sight.

After learning about the military UAVs listed (below) you also may want to consider what it takes to become an operator for the Army or Marines.

1. Avenger (General Atomics)

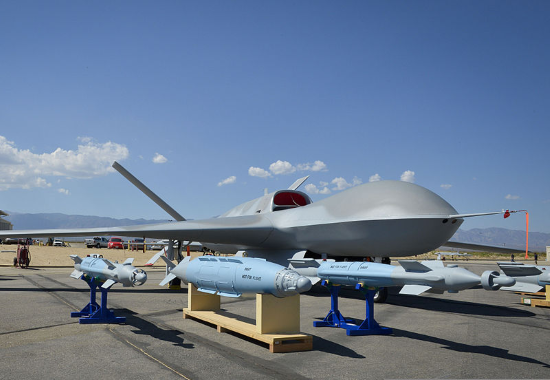

An Avenger drone. Image: Wikimedia.org

Fast Facts: 460 mph (max speed), 402 mph (cruise speed), 18 hours of endurance
Cost: $12-$15 Million
Dimensions: 44′ x 66′
Range: 15,240 miles
First flight: 2009

The Avenger by General Atomics supports a ground control crew of two members.

The military drone is primarily used by the Air Force.

It is powered by a turbofan engine, unlike previous models like the MQ-9 Reaper.

Updates on the Avenger enable it to support internal weapons storage.

After a successful first flight in 2009, the General Atomics Avenger was deployed to Afghanistan.

2. AAI RQ-7

RQ-7 drone. Image: Defense.gov

Fast Facts: 130 mph (max speed), 81 mph (cruise speed), 6/9 hours endurance
Cost: $15.5 Million
Dimensions: 11’2″ x 14″
Range: 68 miles
First flight: 1991

The AAI RQ-7 Shadow is primarily for the U.S. Army offering reconnaissance and surveillance capabilities.

The UAV is launched from a trailer-mounted catapult and requires arresting gear on an aircraft to recover the device.

Army troops have sought an effective battlefield drone since the cancellation of the Alliant RQ-6 Outrider.

The impressive range of the smaller drone helps support Army operations though it is restricted in bad weather conditions.

3. Northrop Grumman X-47A

X-47a drone. Image: Wikimedia.org

Fast Facts: 4,877 lb (weight), 5,903 lb. (max takeoff weight), 40,000 feet (service ceiling)
Cost: N/A
Dimensions: 30′ x 28′
Range: 1,700 miles
First flight: 2003

Northrop Grumman X-47 serves as a demonstration UAV.

The Navy version is known as the X-47B while the original drone is called the X-47A Pegasus.

The U.S. Navy is among the last branches to get on board with incorporating military drones into operations.

Northrop Grumman X-47 is a demonstrator drone after a successful first launch in the early-2000s.

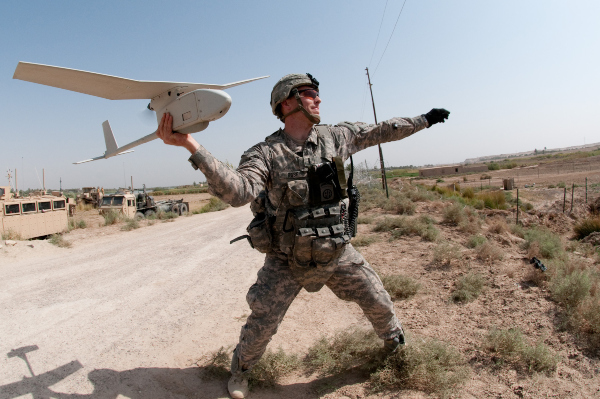

us drones
Military drones get produced in a number of sizes. There are different ways to launch and recover UAVs, including hand launches. Image: Defense.gov

4. MQ-9 Reaper

MQ-9 Reaper drone. Image: Af.mil

Fast Facts: 300 mph (max speed), 194 mph (cruise speed), 14 hours endurance
Cost: $28 Million
Dimensions: 36′ x 65′
Range: 1,200 miles
First flight: 2001

General Atomics MQ-9 Reaper (also called Predator B) is one of the most popular military drones.

The United States Air Force primarily uses the MQ-9 Reaper though it is also used by the Navy, CIA, and NASA.

It is considered the first “hunter-killer UAV” with a design that promotes high altitude and long endurance missions.

The MQ-9 Reaper made headlines in 2008 when it was announced the Air National Guard in New York was beginning a transition from converting F-16 pilot fighters to MQ-9A operators.

There are plans to keep the MQ-9 Reaper in service until the 2030s due to its outstanding and dependable operation.

5. MQ-1 Predator

MQ-1 Predator drone. Image: Af.mil

Fast Facts: 135 mph (max speed), 81 mph (cruise speed), 24 hours endurance
Cost: $20 Million
Dimensions: 27′ x 48’7″
Range: 777 miles
First flight: 1994

General Atomics has another offering with the MQ-1 Predator which was primarily used by the Air Force and CIA.

The MQ-1 Predator is one of the original military drones with an initial conception in the early 1990s.

The military set out to produce an aerial reconnaissance UAV with high-powered cameras and other sensors.

A final design is so effective that the MQ-1 Predator has seen combat in Afghanistan, Pakistan, Iraq, Serbia, Yemen, Syria, and Somalia.

The drone is considered a “Tier II” MALE UAS which means it provides medium-altitude, long-endurance capabilities.

It was retired in 2018 after years of service with the MQ-9 Reaper taking over several of its former operations.

Related Article: 9 Common Private Military Contractor Jobs (and 3 uncommon ones)

6. MQ-8 Fire Scout

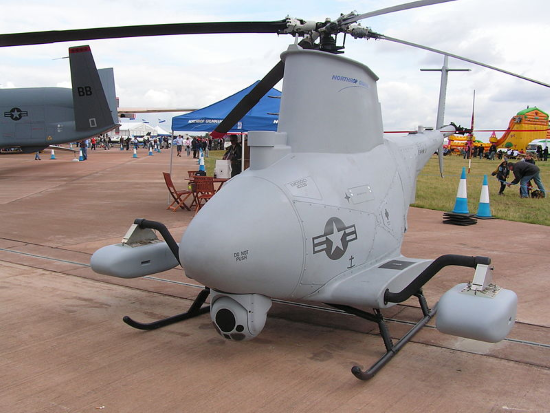

MQ-8 Fire Scout drone. Image: Wikimedia.org

Fast Facts: 132 mph (max speed), 130 mph (cruise speed), 8 hours of endurance
Cost: $27.5 Million
Dimensions: 24′ (length), 28′ (wingspan)
Range: 126 miles
First flight: 2000

The Northrop Grumman MQ-8 Fire Scout is for reconnaissance, aerial fire support, precision targeting support, and situational awareness.

The U.S. Navy embraced the design of the MQ-8 Fire Scout after initially not being blown away by early versions.

It features a four-blade main rotor different from the RQ-8A UAV.

The design reduces noise and improves lift capacity for reconnaissance work.

Several upgrades have improved the overall functionality of the Northrop Grumman MQ-8 Fire Scout.

7. RQ-4

RQ-4 drone. Image: Af.mil

Fast Facts: 391 mph (max speed), 357 mph (cruise speed), 32+ hours endurance
Cost: $99 – $130 Million
Dimensions: 47’7″ x 131′
Range: 14,200 miles
First flight: 1998

Northrop Grumman RQ-4 Global Hawk serves as a high-altitude UAV for the Air Force.

It delivers systematic surveillance with high-altitude radar and long-range infrared sensors.

The military drone is capable of surveying an impressive 40,000 square miles of terrain each day.

To put it in perspective that is the area of Iceland or South Korea.

8. RQ-11 Raven

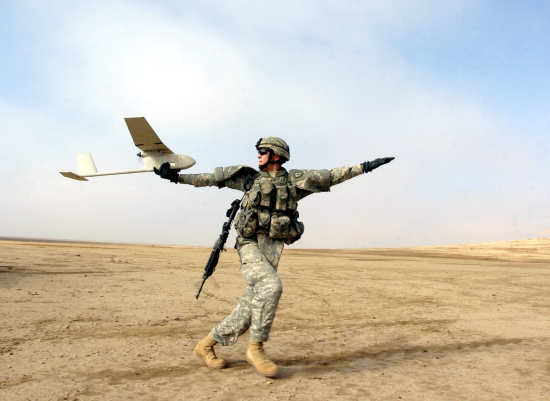

RQ-11 Raven drone. Image: Wikimedia.org

Fast Facts: 18.64 mph (cruising speed), 60-90 minutes endurance, 4.2 lbs.
Cost: $35,000 – $250,000
Dimensions: 3′ x 4.5′
Range: 6.2 miles
First flight: 2001

The RQ-11 Raven is a short-distance and slow-moving military drone, yet it offers several advantages based on its sleek and unassuming design.

Several branches of the military use the RQ-11 Raven including the Air Force and Marine Corps.

It is launched by hand and powered with a pusher configuration electric motor.

The RQ-11 Raven can soar to altitudes 500 feet above the ground and over 15,000 feet above sea level.

The Raven UAV is a fitting company-level device with cruise speeds of around 18 mph.

9. RQ-12 Wasp

Fast Facts: 40 mph (max speed), 0.95 lbs (weight)
Cost: $49,000
Dimensions: 1.25′ x 2.3′
Range: 3 miles
First flight: 2007

Another lightweight and simple drone is the RQ-12 Wasp.

The miniature UAV has the tiny dimensions of a little over one foot long by two feet wide.

The U.S. Air Force likes using the RQ-12 Wasp for beyond-line-of-sight situation awareness.

It offers two onboard cameras delivering real-time intelligence to the operator.

types of military drones
The debate over the ethics of using drones for warfare continues. However, drones are becoming more precise with their targeting as the goal is to reduce civilian casualties that have occurred because of drone strikes in the past. Image: DoDlive

10. RQ-20 Puma

RQ-20 Puma drone. Image: Wikimedia.org

Fast Facts: 52 mph (max speed, 23 mph (cruise speed), 2 hours endurance
Cost: $250,000
Dimensions: 4’7″ x 9’2″
Range: 9.3 miles
First flight: 2007

AeroVironment RQ-20 Puma is a small, compact UAV that is battery powered.

The military drone is hand-launched with a small range of a little under ten miles in distance.

The compact UAV is for surveillance and intelligence gathering thanks to its infrared and electro-optical camera.

Army, Marine, and Air Force operations all depend on the RQ-20 Puma for surveillance.

It is able to operate even in extreme weather conditions which adds value to the UAV.

11. RQ-21 Blackjack

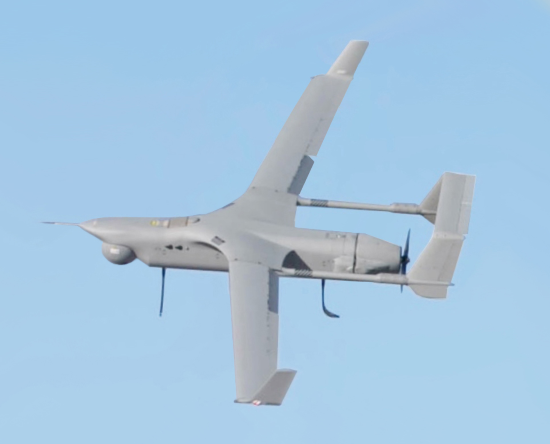

RQ-21 Blackjack drone. Image: Wikimedia.org

Fast Facts: 100 mph (max speed), 63 mph (cruise speed), 16 hours endurance
Dimensions: 8′ x 16′
Range: 58 miles
First flight: 2012

Boeing Insitu RQ-21 Blackjack, also known as the Integrator, is for the U.S. Navy.

The small drone offers a twin-boom, single-engine monoplane for operation.

It is relatively new having taken its first flight in 2012.

The RQ-21 Blackjack got selected by the Marine Corps over other military drones at the time competing for the attention of the branch.

Its forward reconnaissance capabilities are instrumental to Marine operations.

12. RQ-170 Sentinel

Artist conception of an RQ-170 Sentinel drone. Image: Wikimedia.org

Fast Facts: General Electric TF34 Turbofan with three-member ground crew
Dimensions: 14’9″ x 38′.7″
Service Ceiling: 50,000 ft
First flight: 2007

The Lockheed Martin RQ-170 Sentinel is for the Air Force and CIA.

Unfortunately, there are not many details regarding the design or specifications of the RQ-170 Sentinel.

The information remains confidential since the UAV is stealth aircraft fitted with aerial reconnaissance equipment.

Experts say the RQ-170 Sentinel is comparable to the RQ-3 DarkStar and Polecat versions.

The military drone does not carry weapons, making it exclusively used for stealth operations.

Related ArticleCIA Special Activities Division (SAD): 12 Things You Never Knew

Conclusion

Military drones serve an increasingly important role on the battlefield.

The U.S. government is reducing fewer ground troops (and ideally saving more lives) by implementing UAVs in the line of fire as opposed to ‘boots on the ground.’

The future of military operations seems destined to get fought with machines like drones instead of human lives.

Do you think that’s a good or bad thing? What is your personal take on using UAVs for military operations, including launching drone strikes?
